A few weeks ago I did some work with the people over at the ScummVM codebase, a large engine reimplementation project. Their community¹ is really welcoming and great for anyone (even beginners) interested in working in open source.

The MCI Protocol

I wrote a parser for the MCI protocol, an old Windows media API. I was given quite a bit of documentation regarding MCI, and the fact that this protocol even existed was very interesting.

MCI stands for “Media Control Interface” and is a high-level API for controlling media devices. It is now mostly unused in favor of more modern protocols like DirectShow (part of DirectX) and Universal Windows Platform. The idea is that device drivers would implement API and would thus be controllable through high-level commands like play file.wav from 0 to 100.

The general command structure is:

command <device> [parameters ...]

It’s actually quite a nice and simple way of controlling your devices.

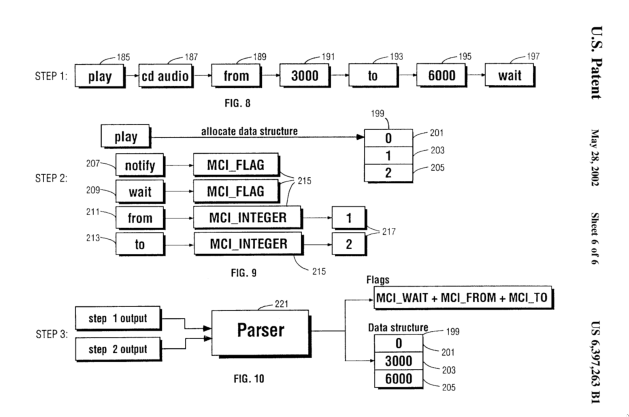

IBM filed a patent in 2002 for the mechanism which parses MCI commands. The entire document was quite intriguing, since they are explaining quite a simple program that takes a command string and turns it into a data structure² (basically just a parser). They even describe the tokenization procedure and that tokens will be saved in a linked list (as opposed to an array), probably to fascilitate for low memory devices. I wonder if someone implementing the MCI protocol would have to pay IBM for it.

The Command Table

An interesting part of their implementation is how there is no specific command list/specification. Rather, a command table will have to be provided which is parsed and each command’s arguments are determined from it. This way, someone can add new commands to the protocol by just modifying this table. In our code, we keep the table as a structure in-memory. Here is part of the table that corresponds to MCI’s open commmand:

static CmdTableRow table[] = {
  {"open"            ,MCI_OPEN      ,0          ,MCI_COMMAND_HEAD },
  {""                ,MCI_INTEGER   ,0          ,MCI_RETURN }      ,
  {"notify"          ,0x00000001L   ,-1         ,MCI_FLAG }        ,
  {"wait"            ,0x00000002L   ,-1         ,MCI_FLAG }        ,
  {"type"            ,0x00002000L   ,-1         ,MCI_STRING }      ,
  {"element"         ,0x00000200L   ,-1         ,MCI_STRING }      ,
  {"alias"           ,0x00000400L   ,-1         ,MCI_STRING }      ,
  {"shareable"       ,0x00000100L   ,-1         ,MCI_FLAG }        ,
  {""                ,0x00000000L   ,-1         ,MCI_END_COMMAND } ,
  // ...

For my implementation, I studied how Wine implemented an MCI parser. Their code is a little esoteric, thanks to variable names like dwParam2 and S_MciCmdTable[uTbl].lpTable. It’s not entirely the Wine project’s fault though, as they are following old windows coding style conventions.

Studying Wine’s code gave me some insight into what “compatibility layer” means. If a program had code which executed MCI commands using the Win32 API, Wine goes through and actually parses them at a high level, “translating” them into calls to Linux sound/video APIs.

This is exactly what we did in ScummVM, parsing the MCI commands and running the corresponding calls to ScummVM’s sound/video APIs. You can find ScummVM’s MCI parser implementation here. We decided to steer away from the architecture provided in the afformentioned patent, providing a more readable API by saving each command’s arguments in a hash table rather than a byte array.
